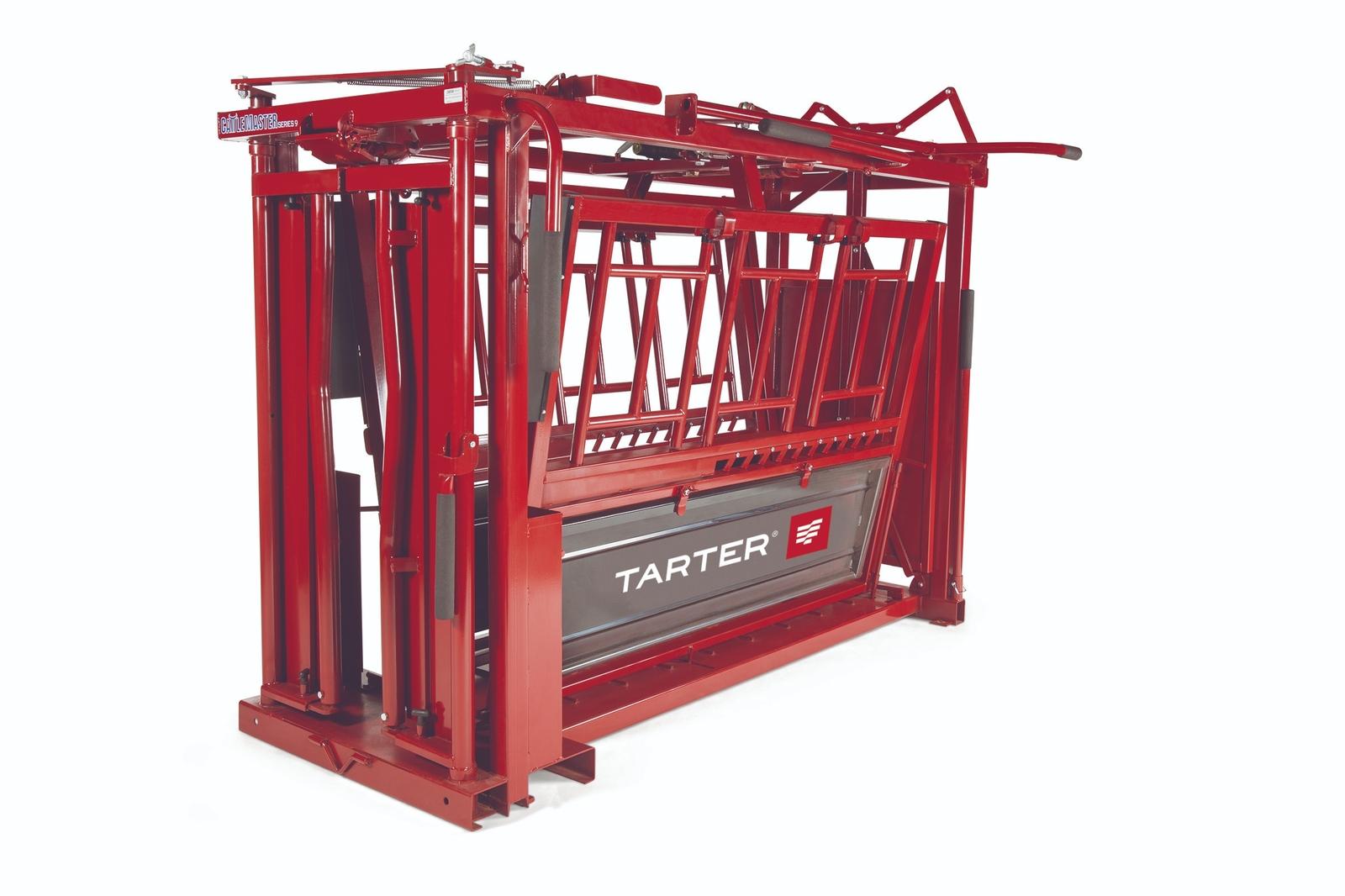

Tarter Cattlemaster Series 9 Squeeze Chute W/Auto Headgate
$7,499.99
$7,999.99
Tarter Cattlemaster Series 9 Squeeze Chute W/Auto Headgate
SKU2752584
EIDCMSCA9
Tarter’s CattleMaster Series 9 Chute is built on a heavy-duty steel frame, making it tough enough to hold up to the rigors of high-volume cattle handling. It’s easy to use and protects your investment. The automatic, spring-cushioned headgate does the catching for you. Once the animal is released, it automatically resets for the next round. The squeeze mechanism applies pressure safely to keep cattle still while you work.

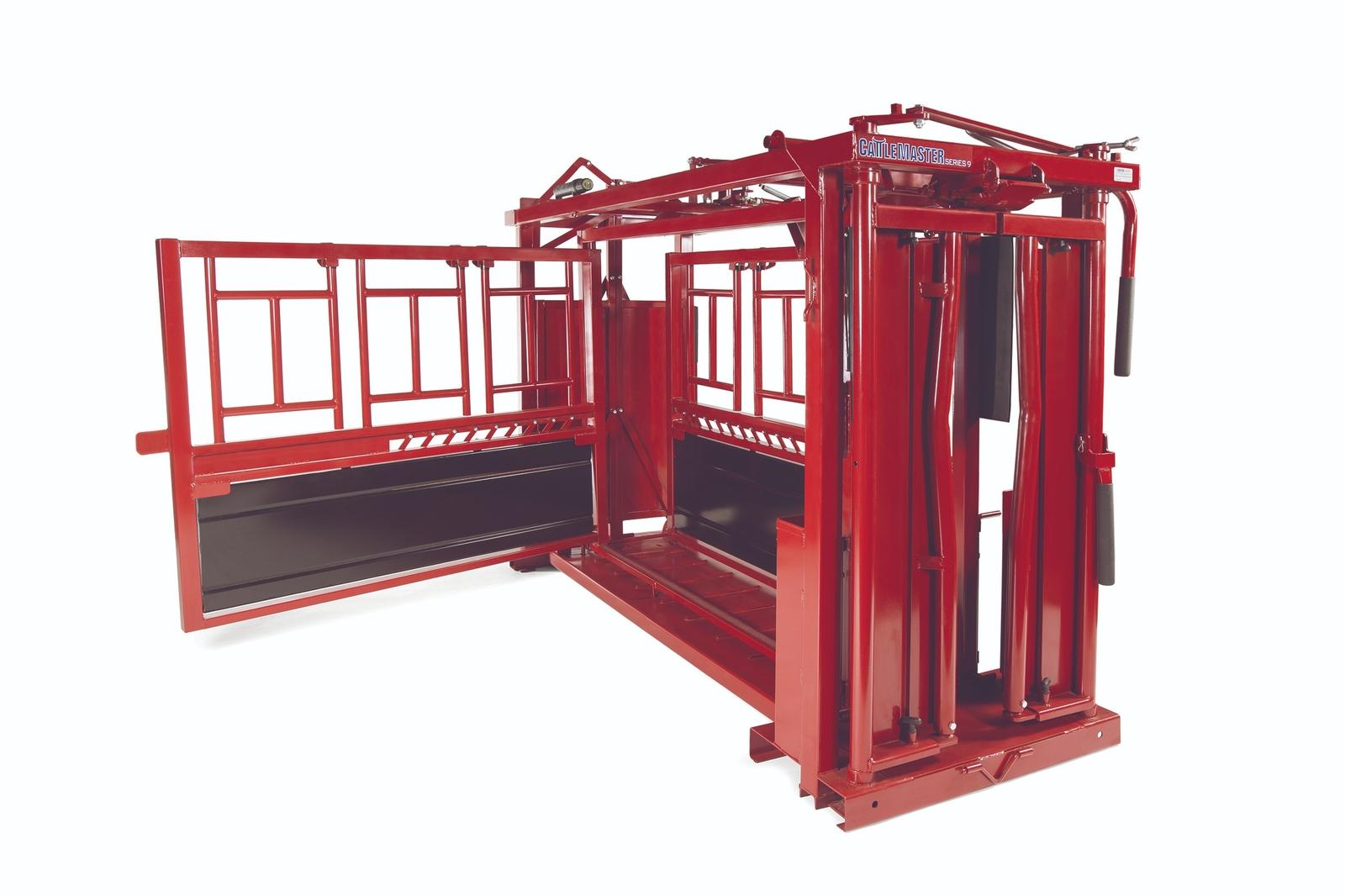

The removable top and bottom panels allow quick and easy access for branding, vaccinating, and deworming. The adjustable side panels easily accommodate everything from calves to bulls. The hinged side panel opens, providing an additional exit.
Tapered side panels have 6 adjustment settings. This chute is coated with a corrosion-resistant finish.
Part
CMSCA9
Length
111 in.
Width
52 in.
Herd Size
50+ Head
Approx. Weight
1650 lbs
Height
88 in.
Color
RED
Headgate Type
Automatic
Top Side Access
Yes
Upper Access Panels
Hinged, Removable
Tailgate Style
Split Pivot
Removable Kickpan
Yes
Ratcheting Back Up Bar
Yes
Side Panel Width Adjustment
Yes
Adjustable Neck Extenders
No
Nose Bar Available
No
Maximum Recommended Animal Weight
2000 lbs
Gallagher Scale Adapter Kit Available
No
Minimum Operating Clearance
112 in. H x 105 in. W x 109 in. L
Wheel Kit Available
Yes
Warranty
1 Year
Max. Interior Dimensions (Height x Width x Length)
62 in. H x 39 in. W x 98 in. L
