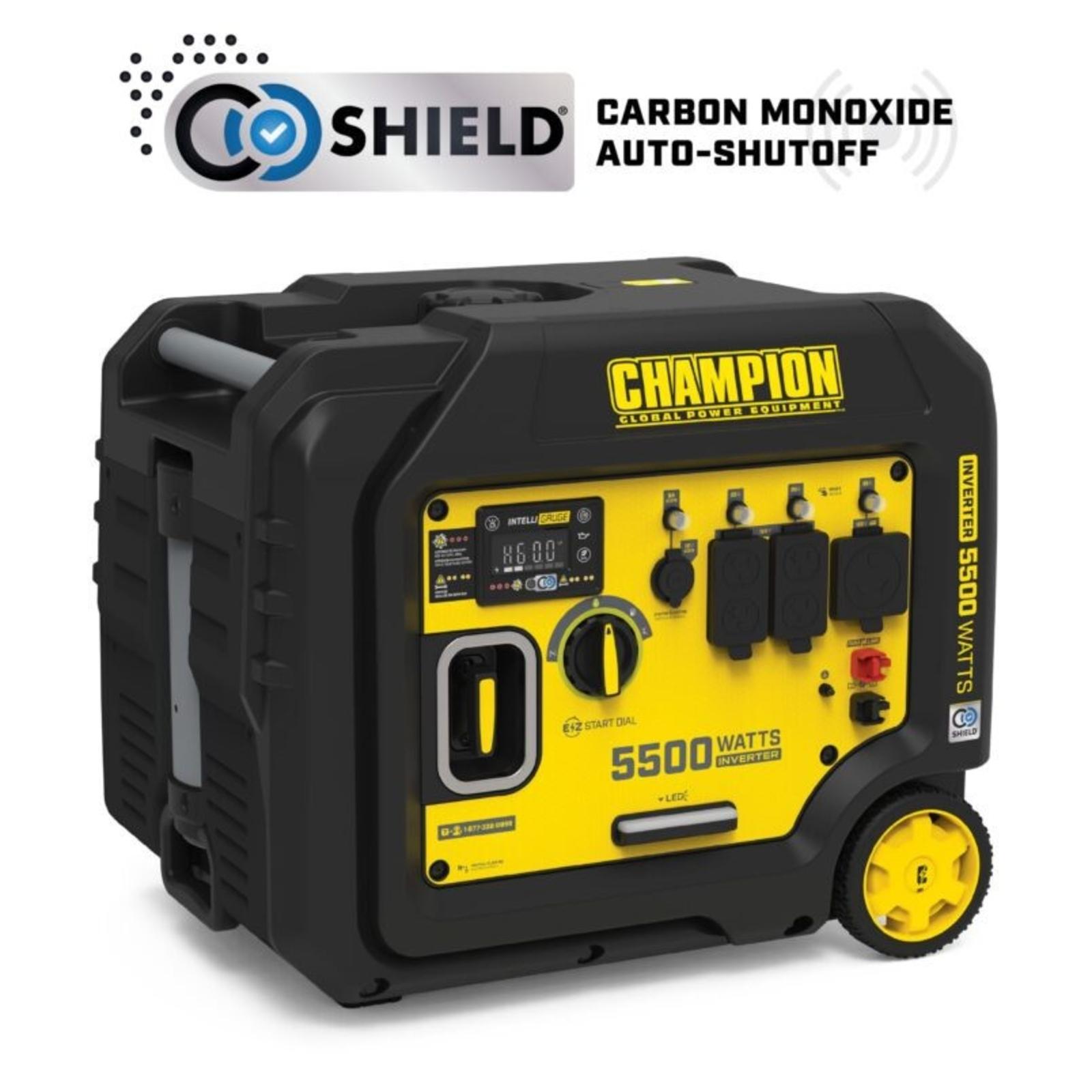

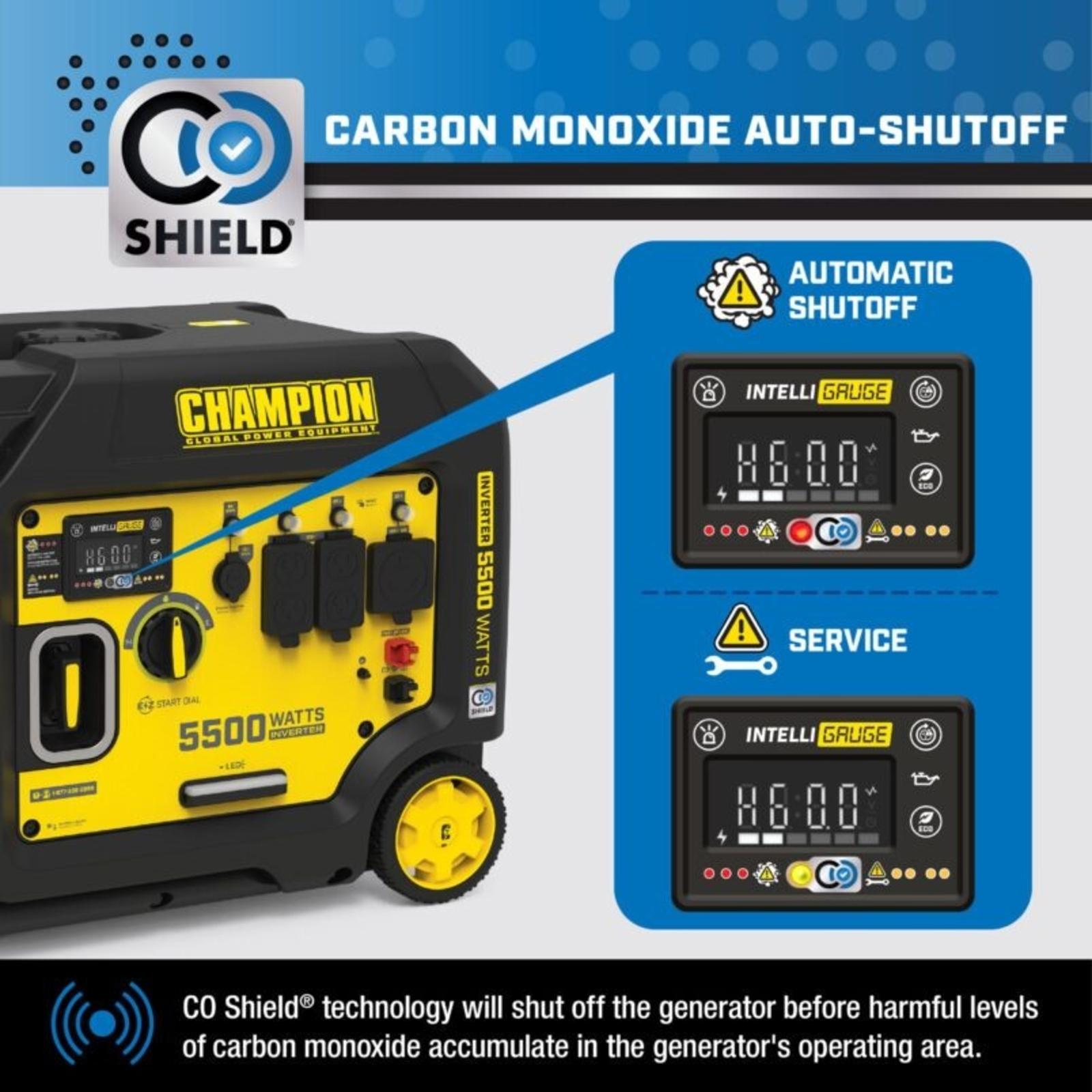

Champion 5500W Inverter with CO Shield

$899.99
Champion 5500W Inverter with CO Shield

SKU3033993
EID 10066361

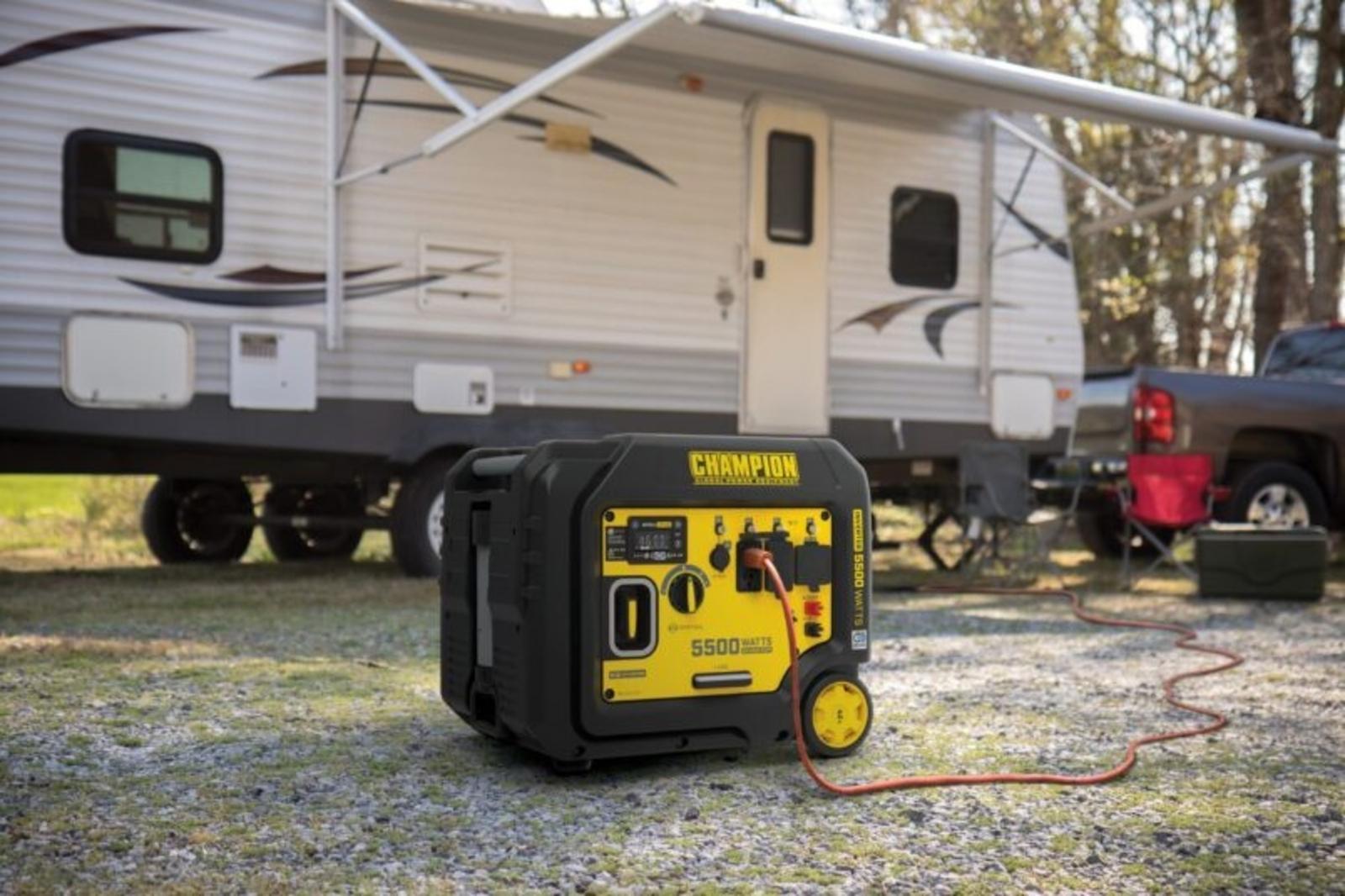

The Champion Power Equipment 5500-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.
Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start Technology, the reliable 224cc Champion engine produces 5500 starting watts and 4000 running watts, and runs for 20 hours at 25% load when the 3.7-gallon fuel tank is full.
Refueling in the dark is a cinch thanks to Fuel Fill Assist LED, a flip-up LED to illuminate the gasoline fill area.
With a 0.6-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61 dBA from 23 feet, which is about as loud as normal speech.
The no tool access panel and oil drain tube allow for easy maintenance.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

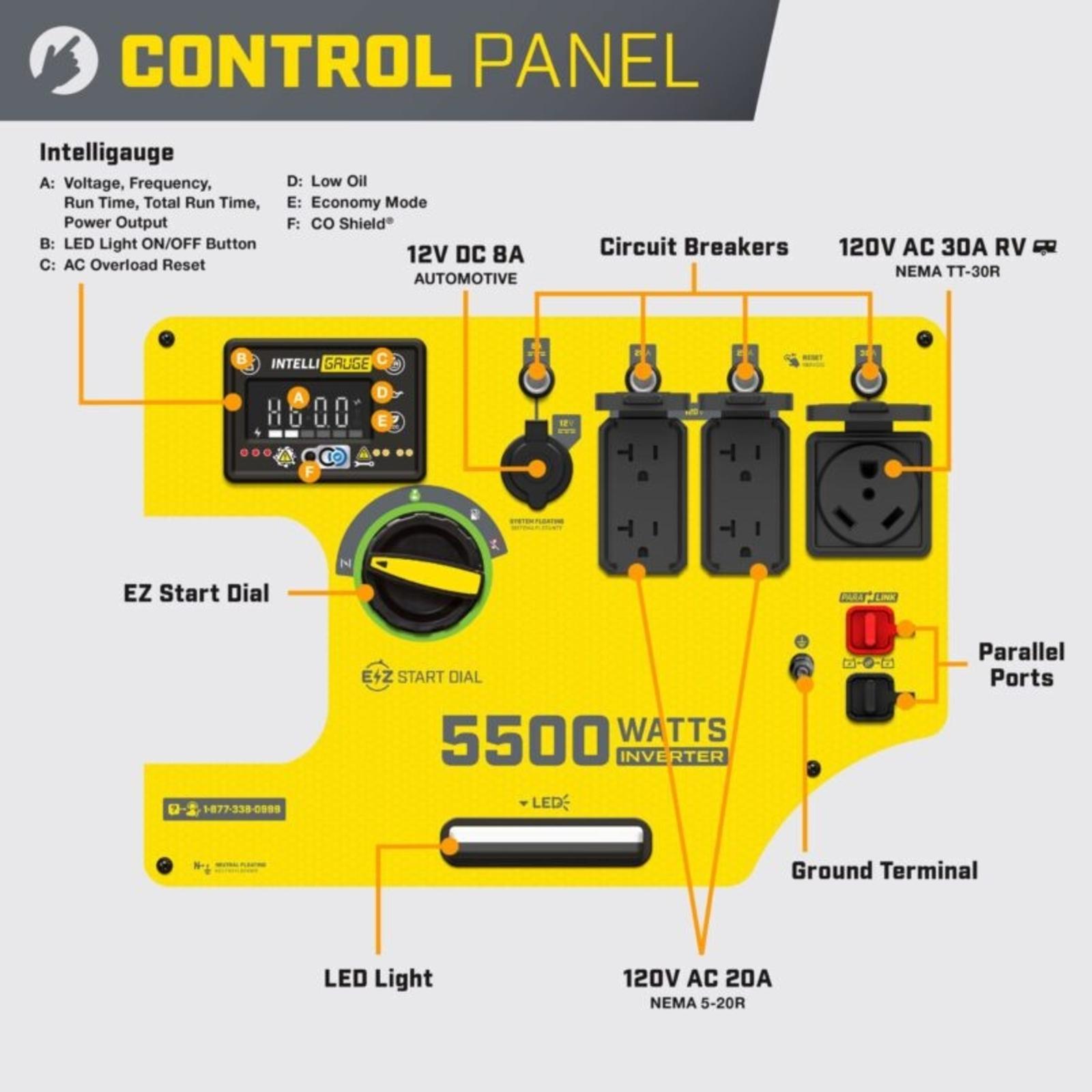

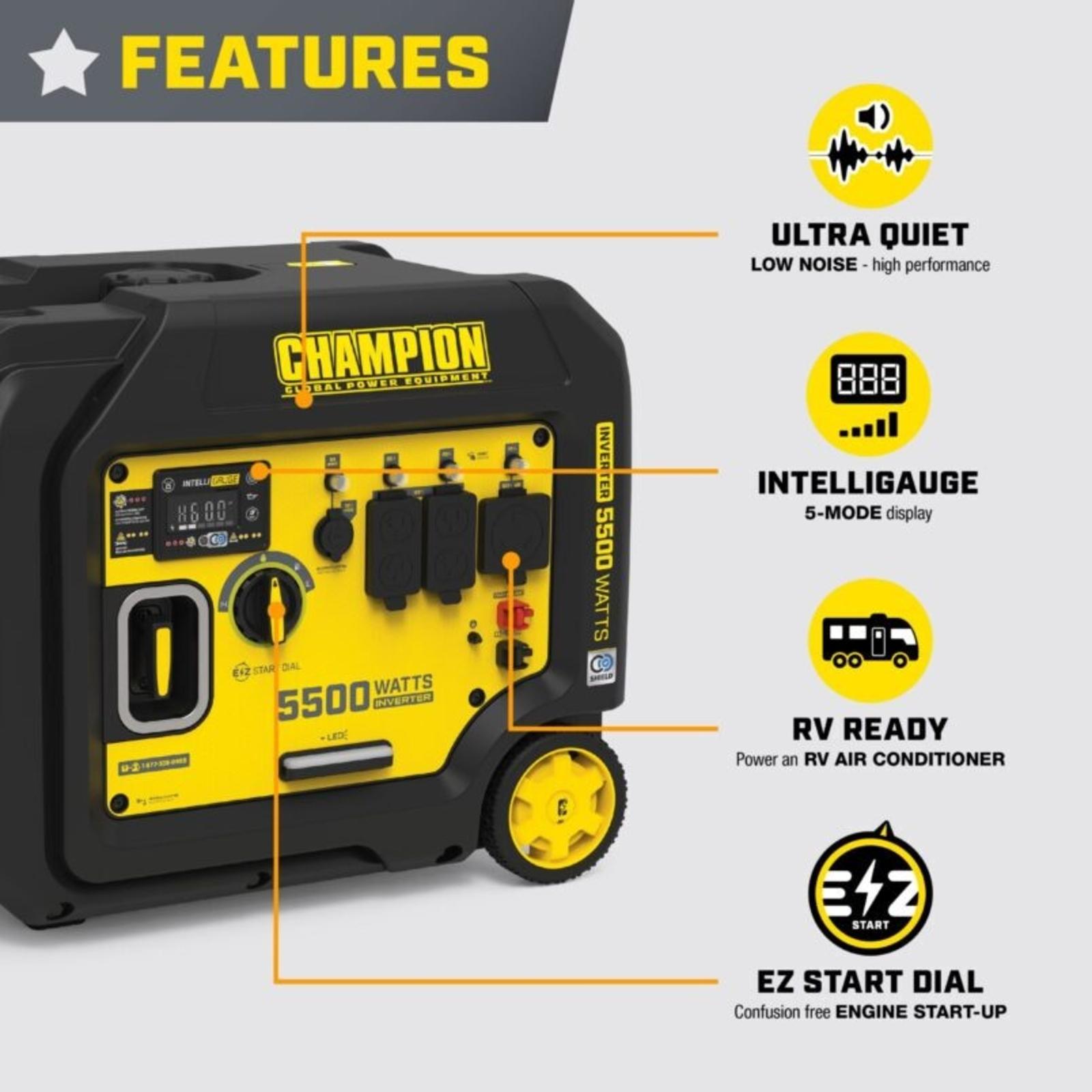

Our Quick Touch Panel offers fast access to your controls, plus the built-in LED lights make it easy to use in the dark. The Intelligauge monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce engine wear. As the electrical load is reduced, the inverter reduces engine speed, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets in this inverter include a 120V 30A TT-30R outlet, two 120V 20A household duplex outlets (5-20R), and a 12V regulated automotive-style outlet.
Connect with another Parallel Ready Champion Inverter or Power Station for more power and longer run time. The never flat tires and new telescoping handle make transport a cinch.
| Portable Generator Technology | ParaLINK® |
|---|---|
| Gasoline Starting Watts | 5500W |
| Gasoline Running Watts | 4000W |
| Gasoline Starting Amps at 120V | 45.8A |
| Gasoline Running Amps at 120V | 33.3A |
| Volts | 120 |
| Frequency | 60Hz |
| AC Receptacles | (1) 120V 20A Duplex (5-20R), (1) 120V 30A (TT-30R), Parallel |
| DC Operation | Yes |
| DC Receptacles | (1) 12V 8A Automotive (Regulated) |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 20 h. |
| Noise Level | 61 dB(A) |
| Inverter | Enclosed |
| Parallel Capability | Yes |
| Voltmeter | Intelligauge with Power Meter |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | No |
| Gasoline Capacity | 3.7 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 5.5 in. |
| PGMA Compliant | G300-2018 |
| EPA Certified | Yes |
Measurements
| Length | 24.6 in. |
|---|---|
| Width | 19 in. |
| Height | 20.9 in. |
| Weight | 109.1 lb. |
What’s included
- Engine Oil
- Oil Funnel
- 10mm Socket
